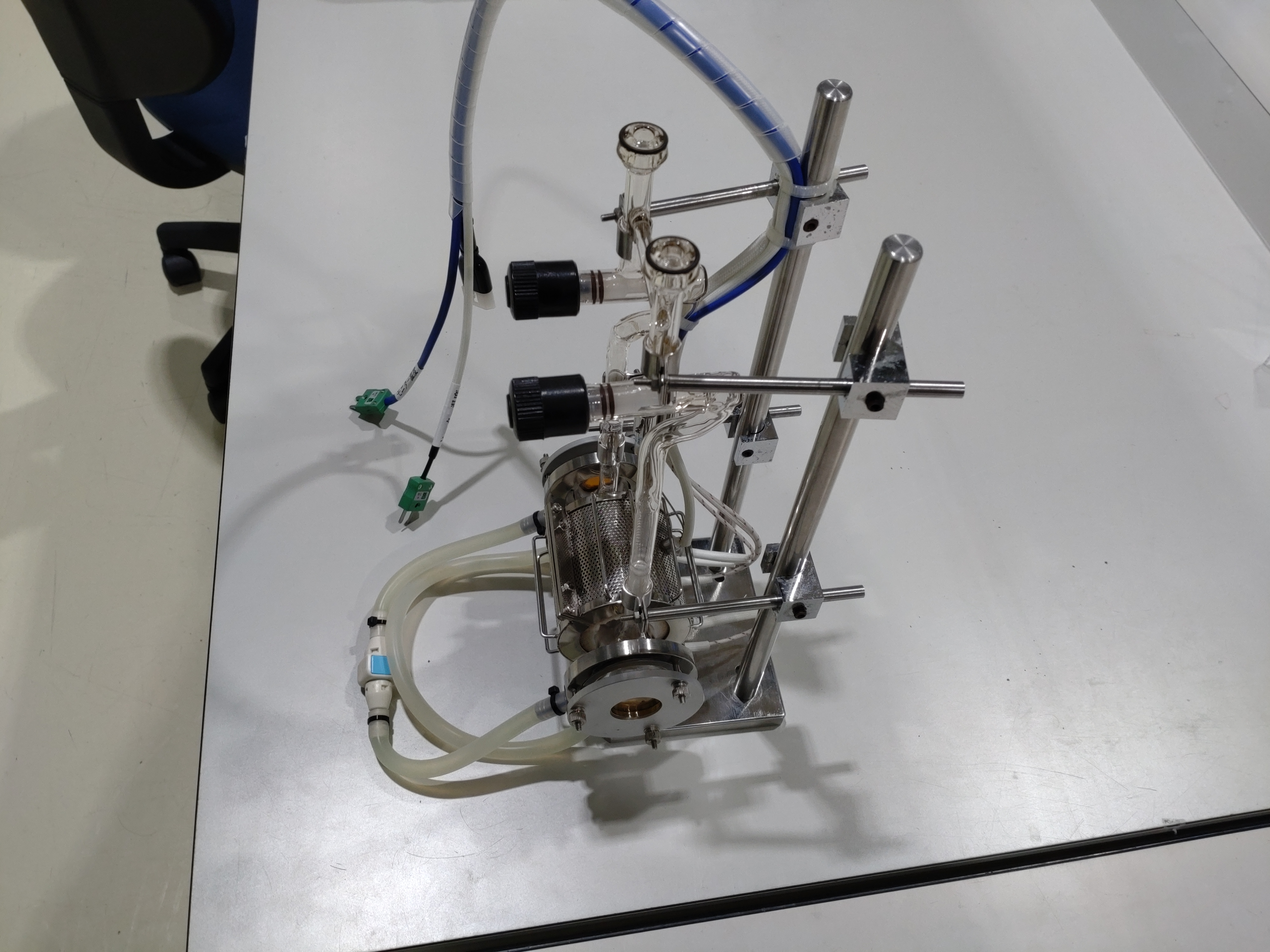

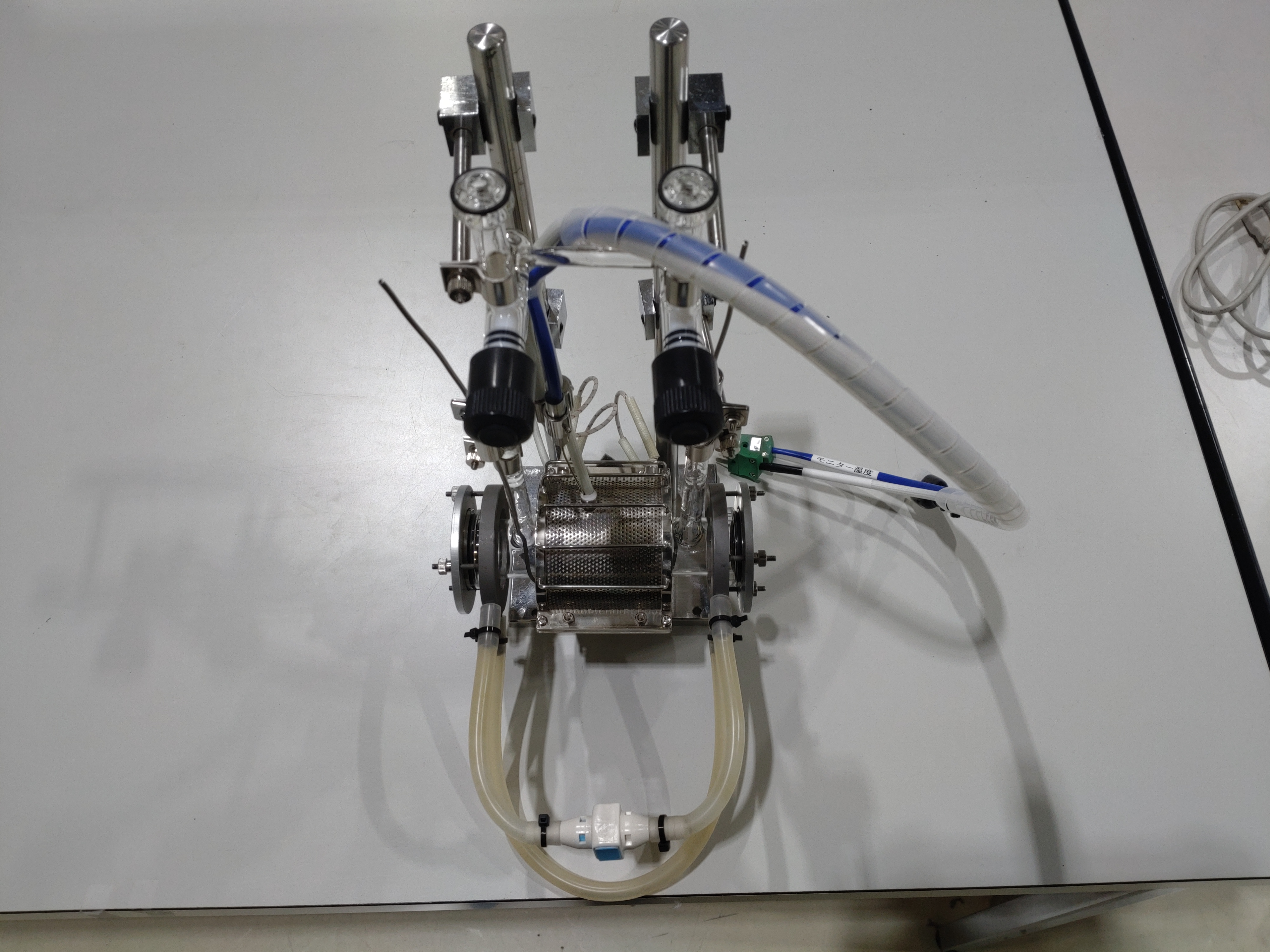

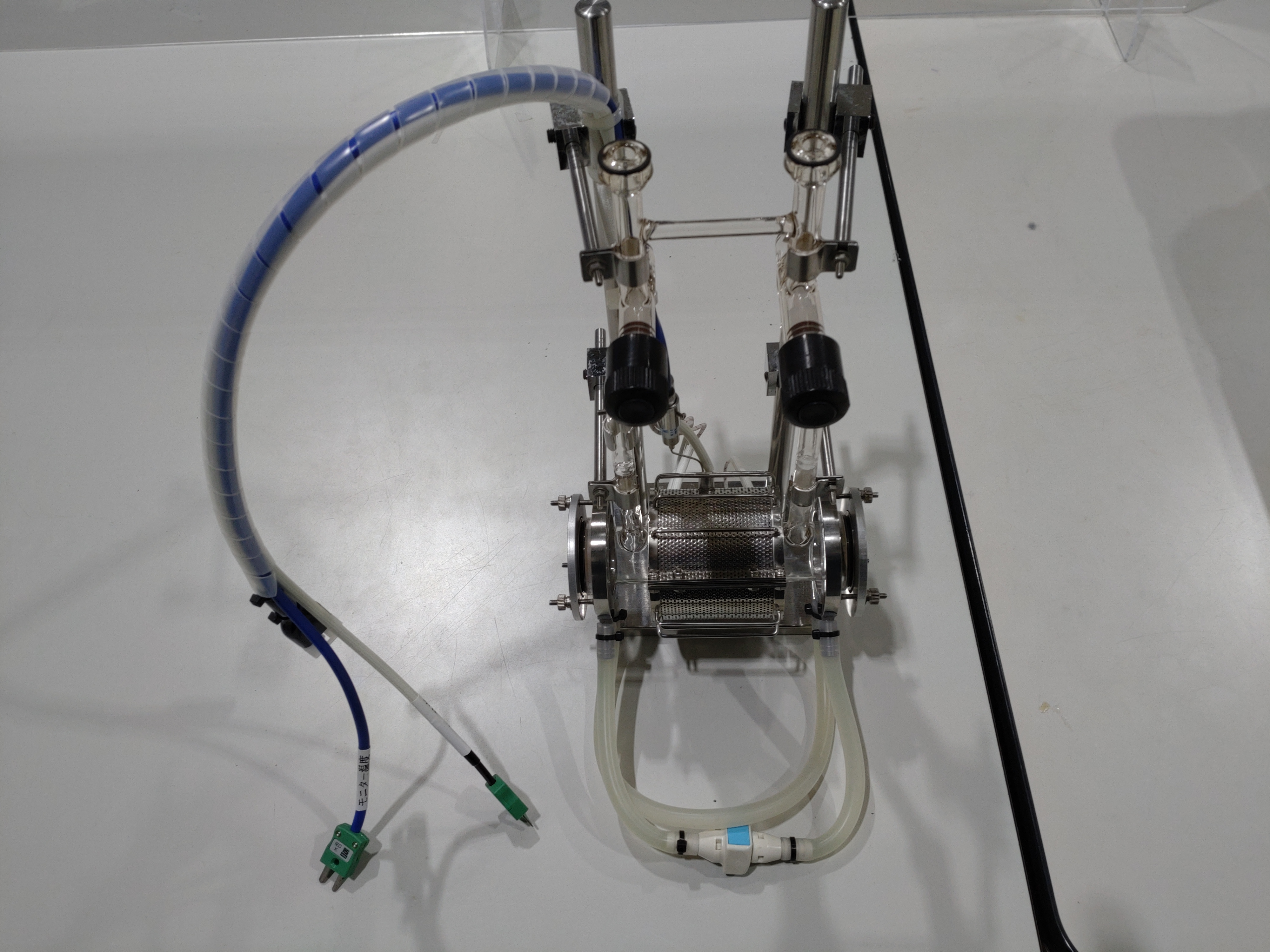

Quartz cell No.1
Specifications
- Cell typeQuartz H-type
- Company有限会社幕張理化学硝子製作所
- Cell sizeW150mm × D150mm × H330mm
- Int. diameter30mm
- Max temp.800°C (set) / 609.57°C (sample)
under He flow (200ml/min) - Sample shapePellet

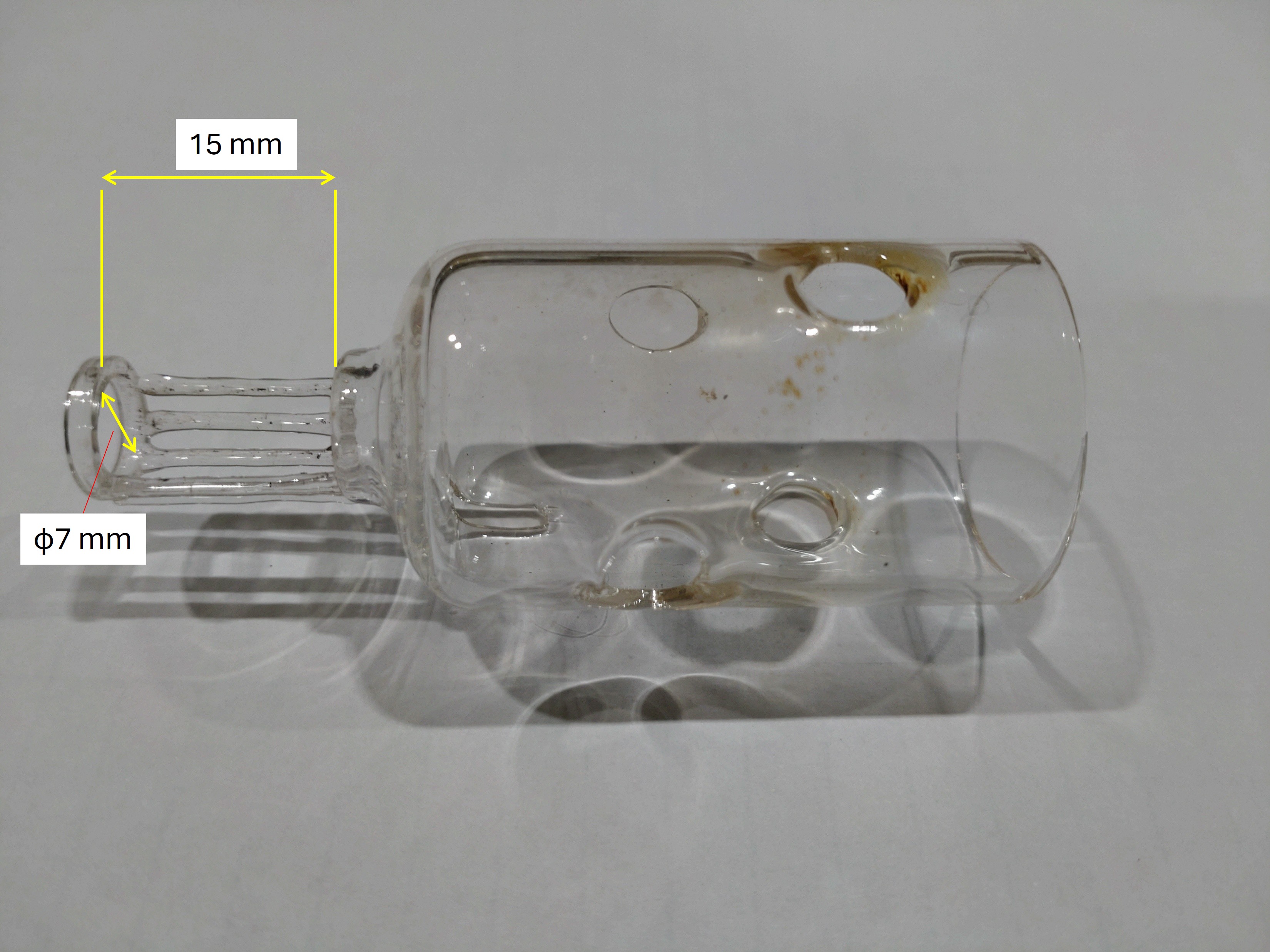

- Max sample sizeφ7mm × 15mmt
- Sample mount-

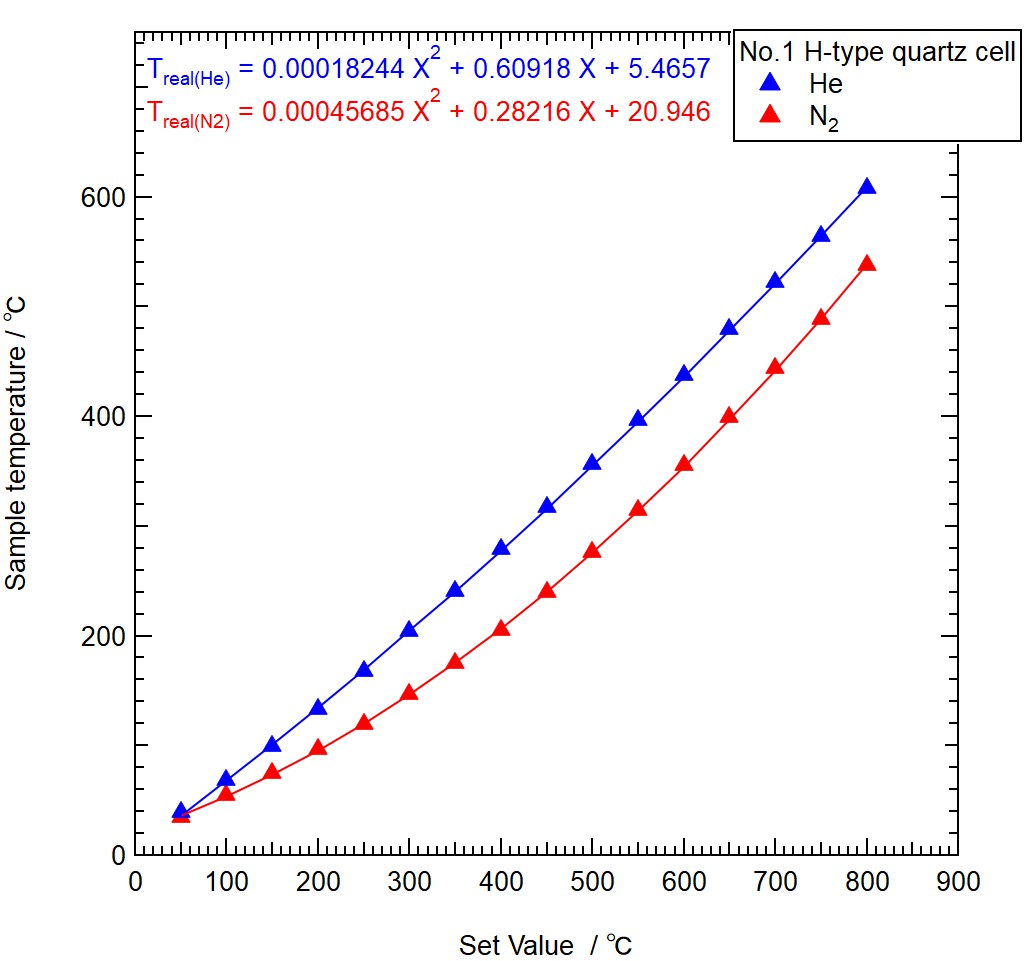

Correlation between Set and Sample Temperature
Last update: 2026/5/29

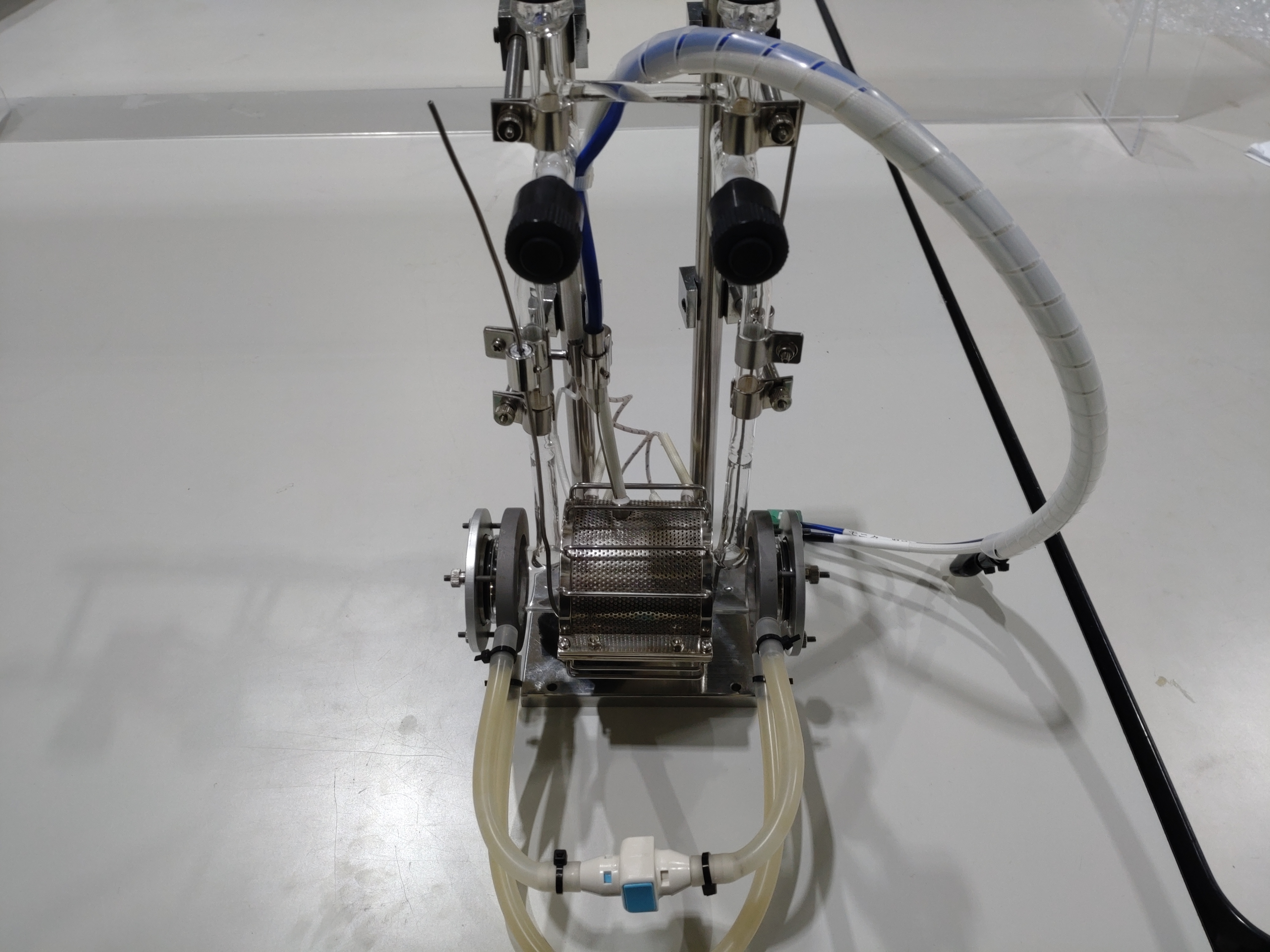

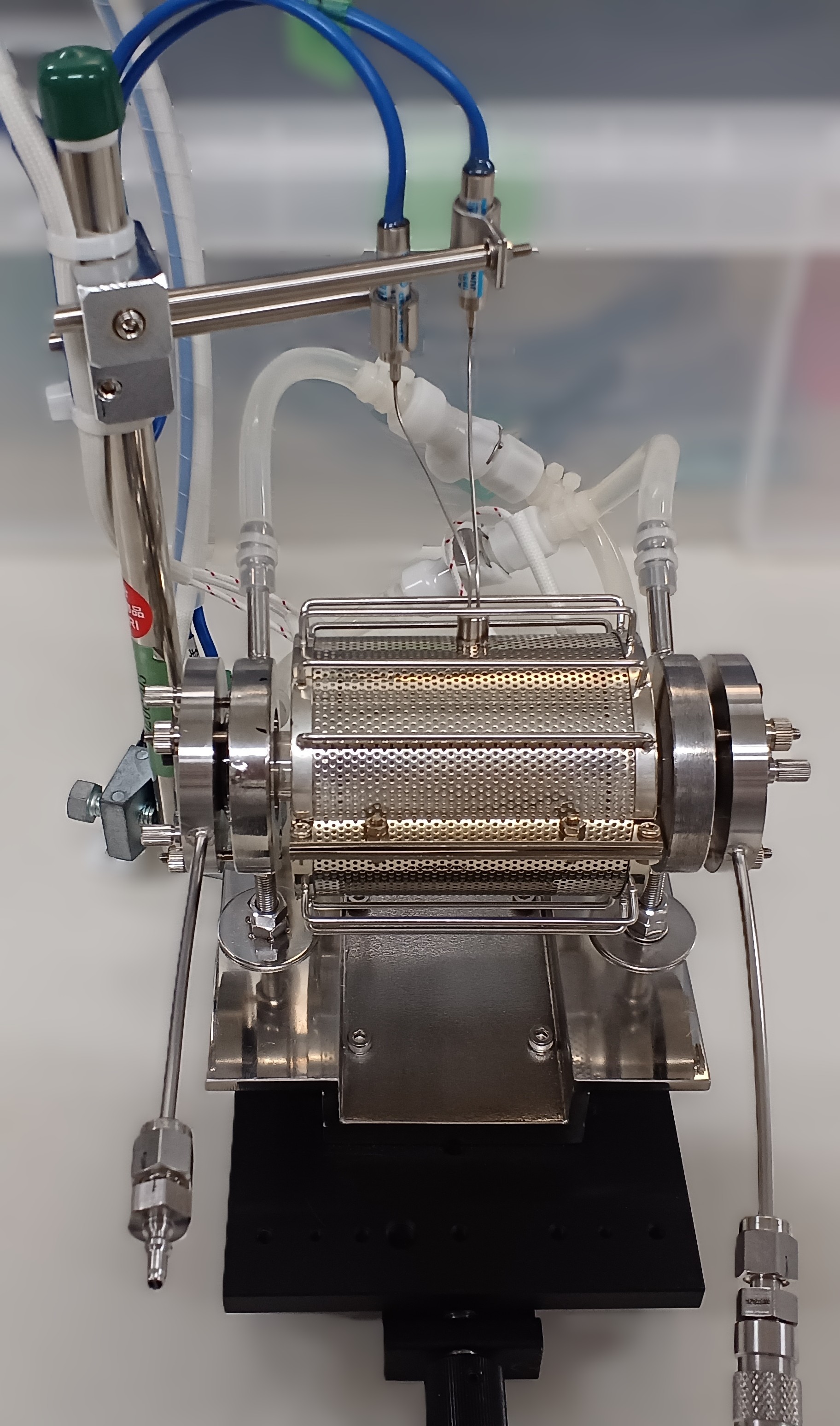

Quartz cell No.2
Specifications
- Cell typeQuartz H-type
- Company有限会社幕張理化学硝子製作所
- Cell sizeW150mm × D150mm × H330mm
- Diameter30mm
- Max temp.800°C (set) / 550°C (sample)
- Sample shapePellet

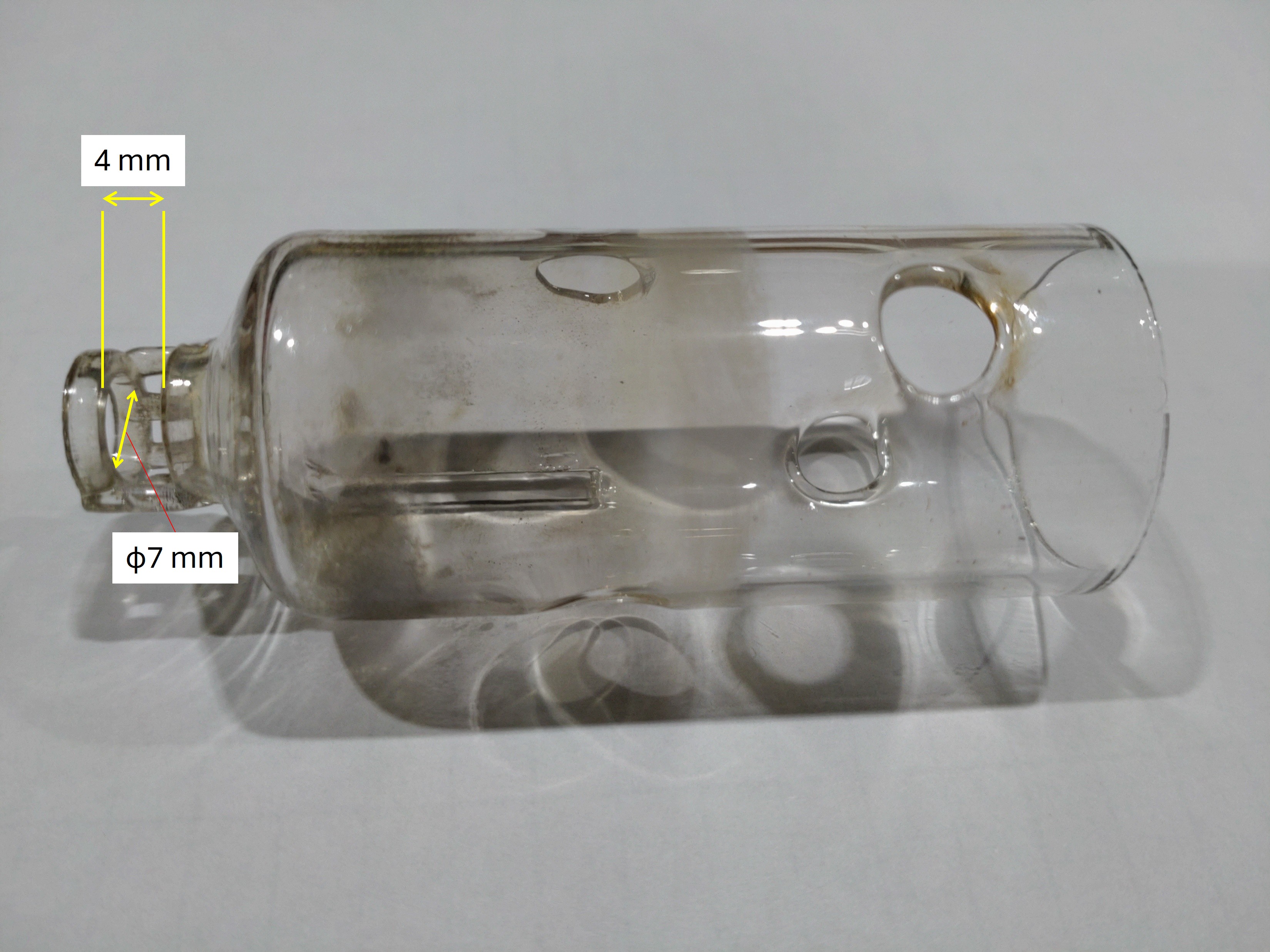

- Max sample sizeφ7 × 15mm (thick)
- Sample mount-

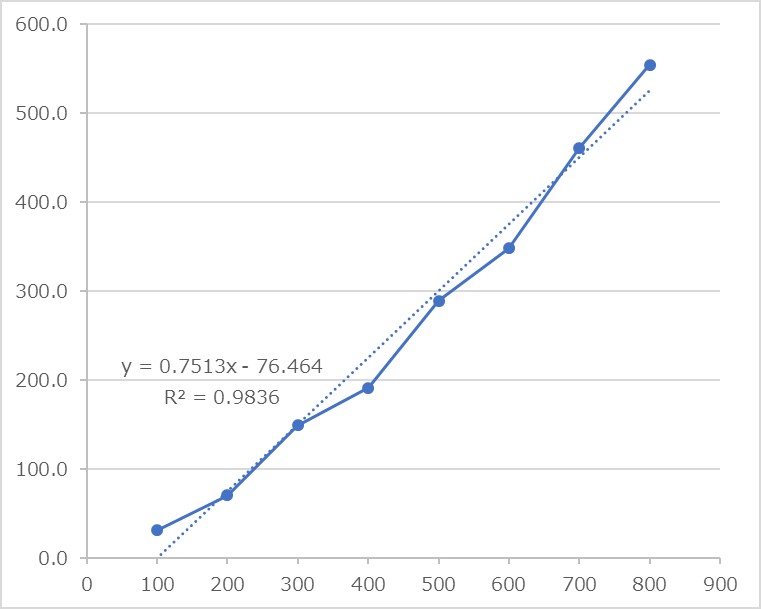

Correlation between Set and Sample Temperature
Last update: 2023/5/9

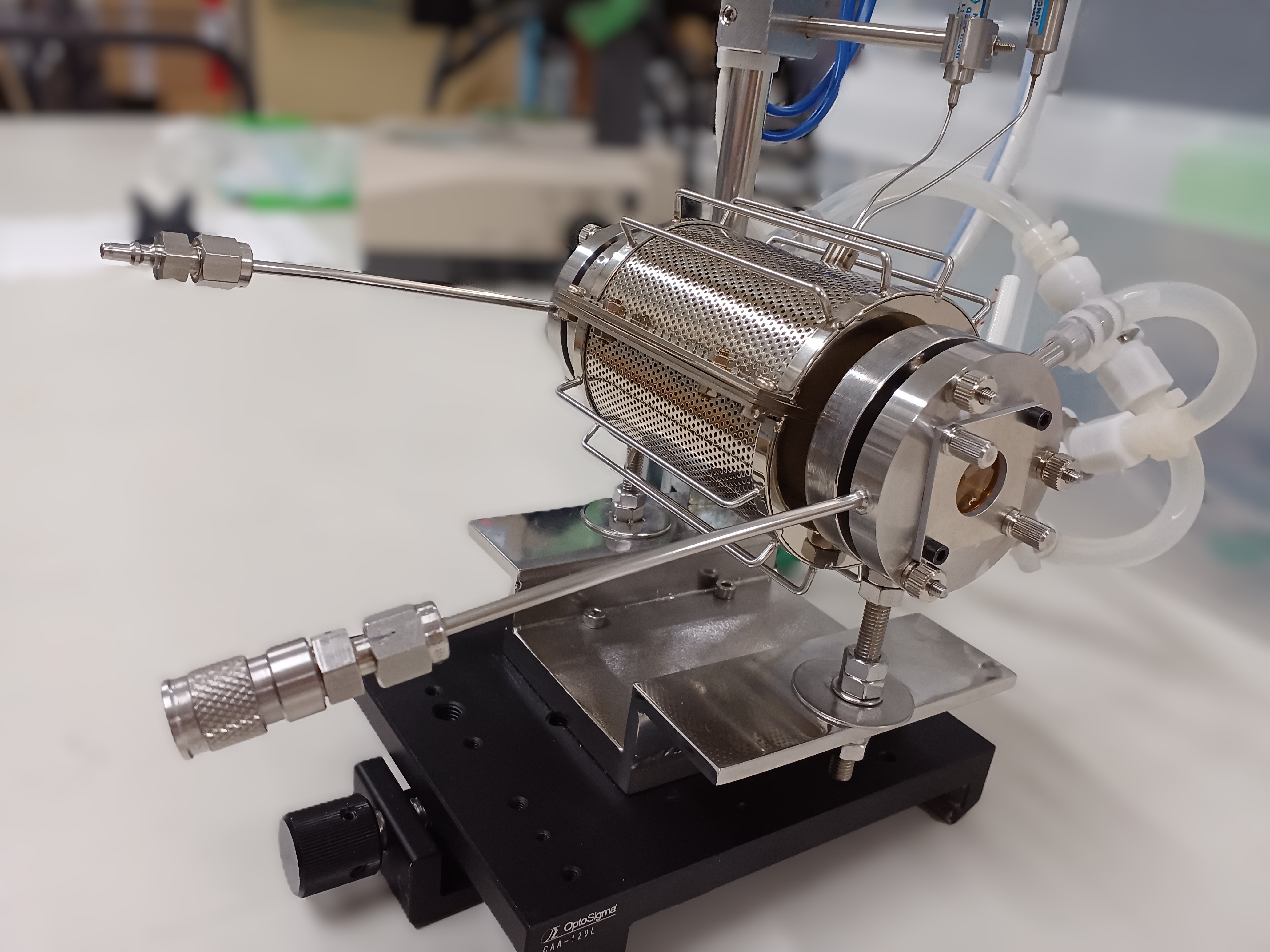

Quartz cell No.3
Specifications
- Cell typeQuartz straight type
- Maker有限会社幕張理化学硝子製作所
- Cell size-
- Int. diameter-
- Max temp.800°C (set) / 910°C (sample)
- Sample shapePellet

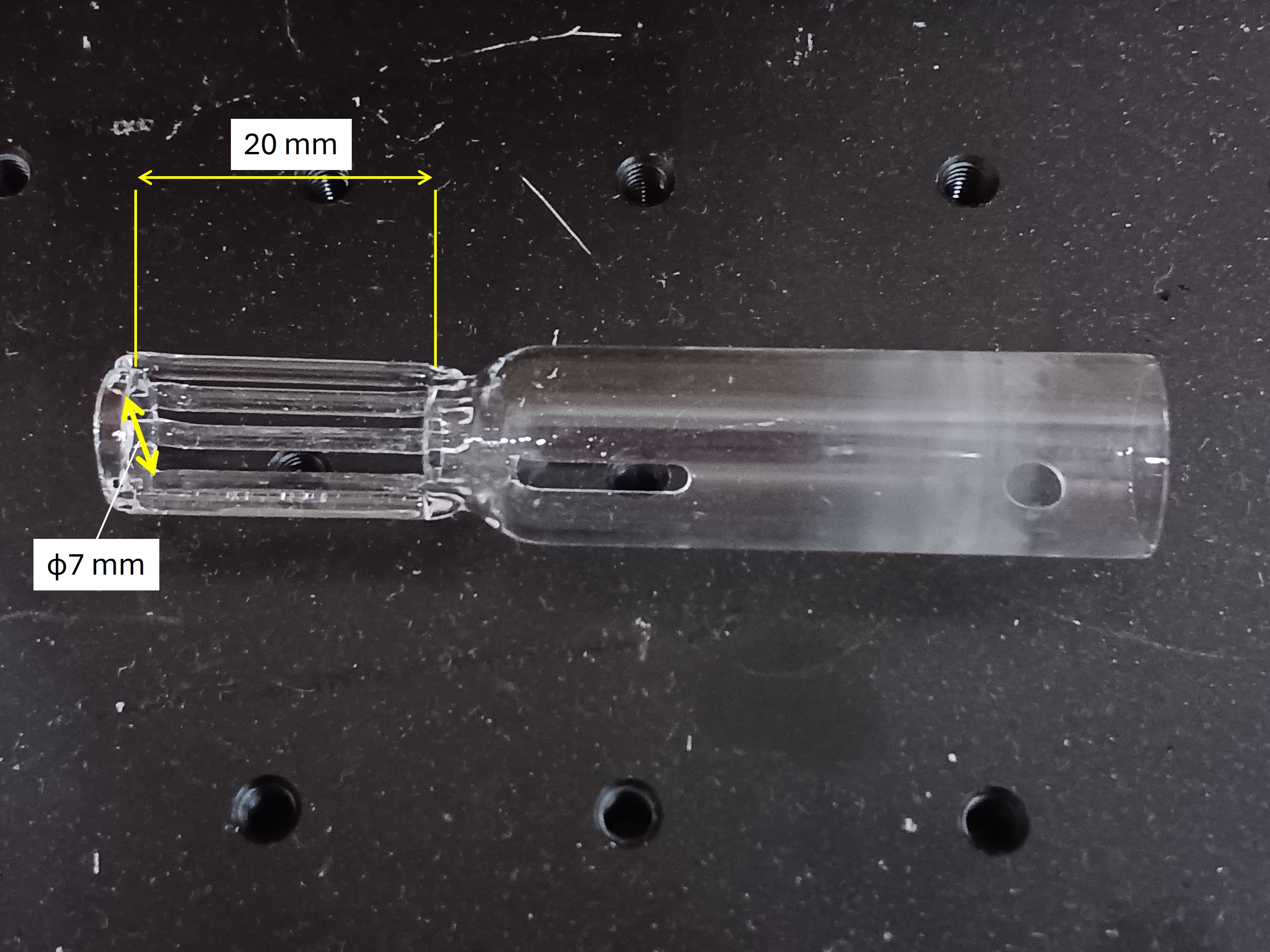

- Max sample sizeφ7 × 20 mm (thickness)

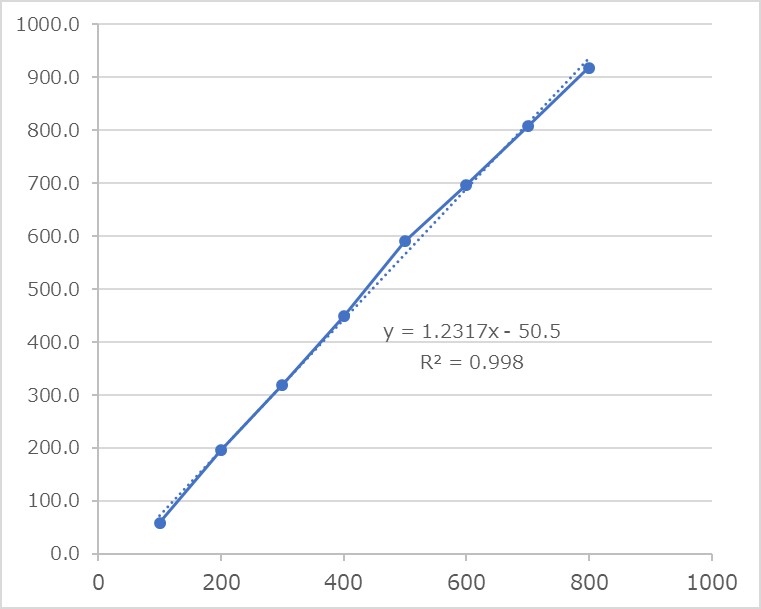

Correlation between Set and Sample Temperature
Last update: 2023/5/9

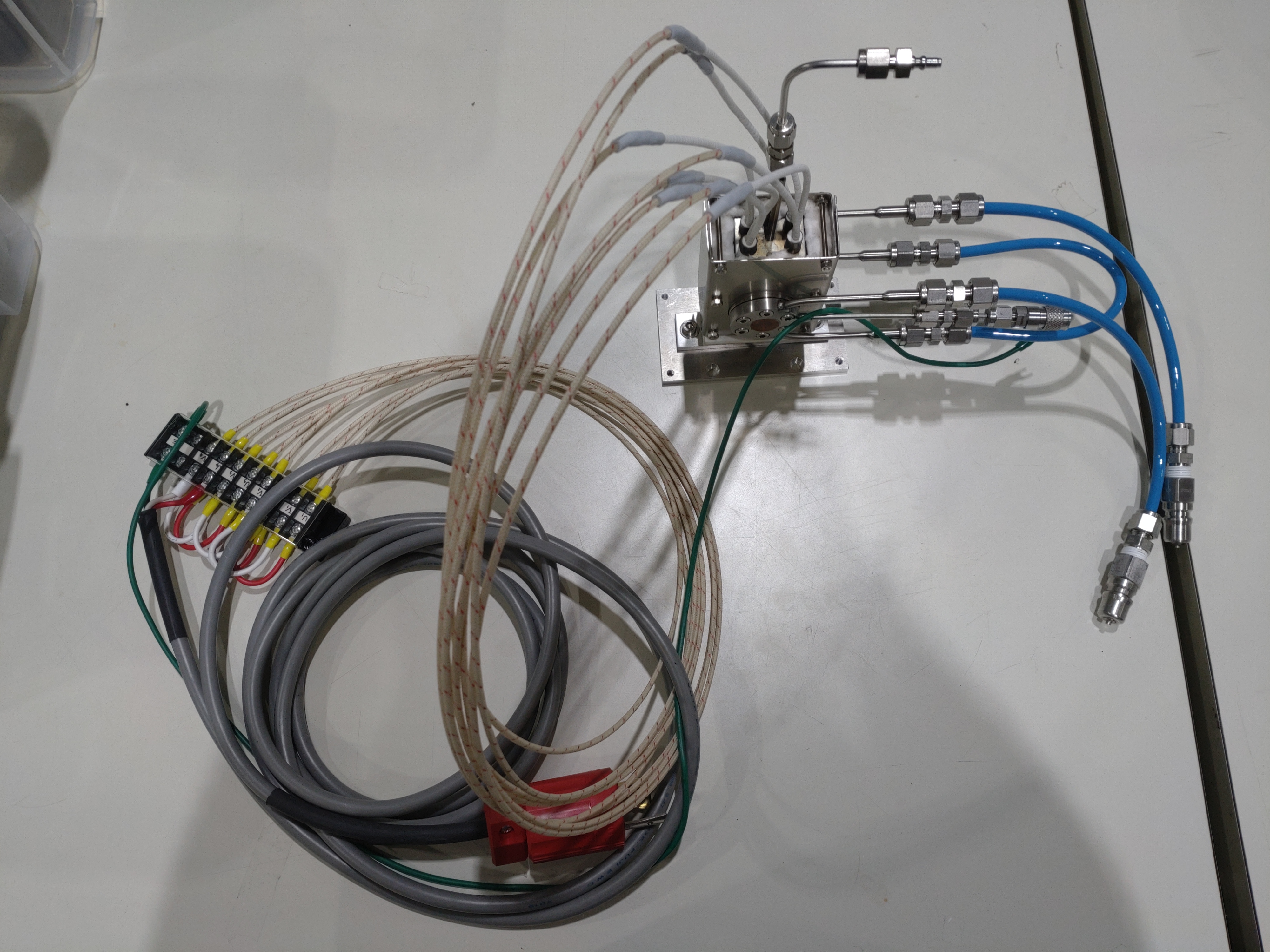

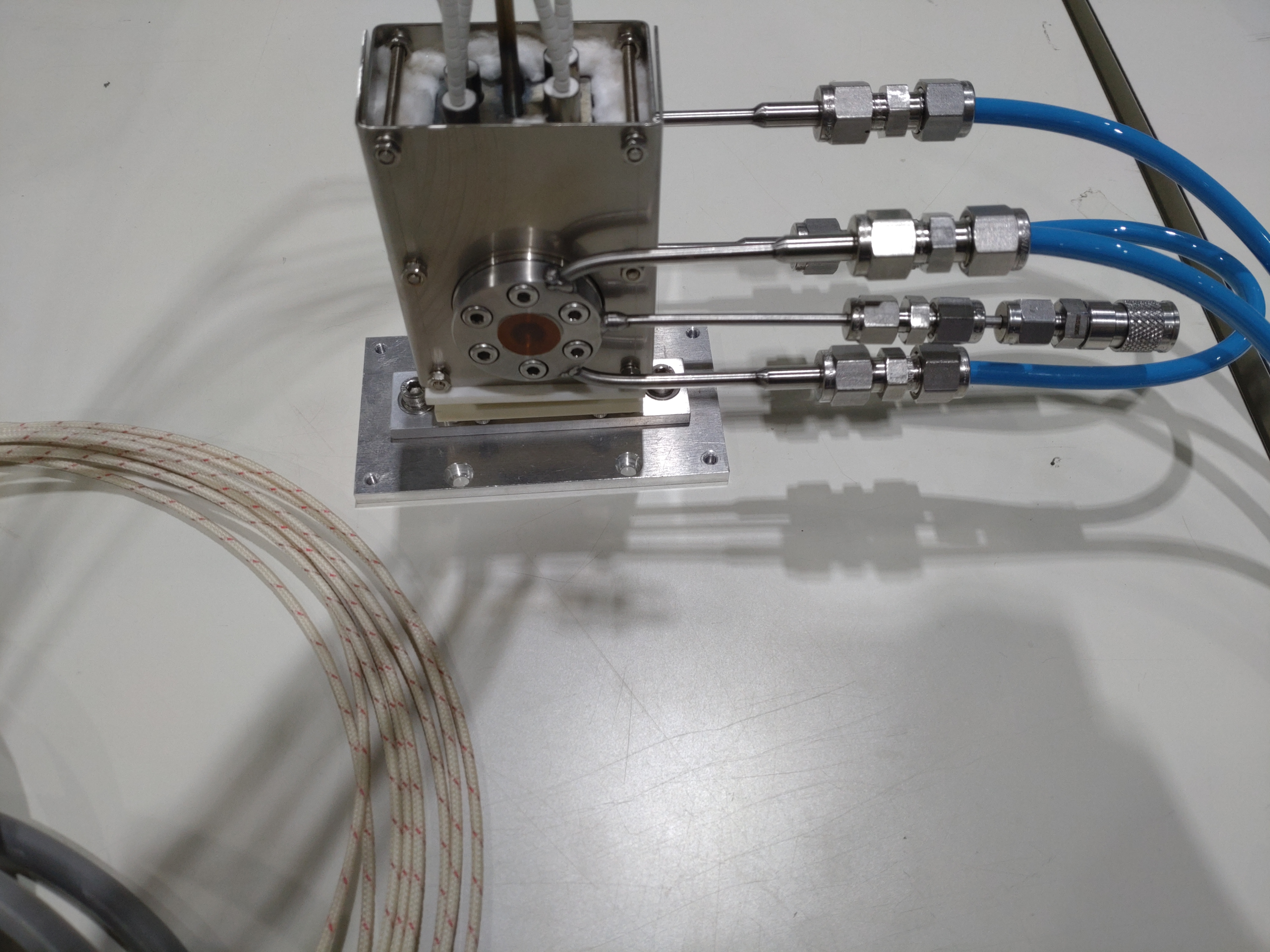

SUS cell
Specifications
- Cell typeSUS ASPF-type
- Cell size-
- Maker共和真空技術株式会社
- HeaterHakko GLC2303 200V/300W × 4
- Max temp.800°C (set) / 610°C (sample)
- Sample shapePellet
- Max sample size-

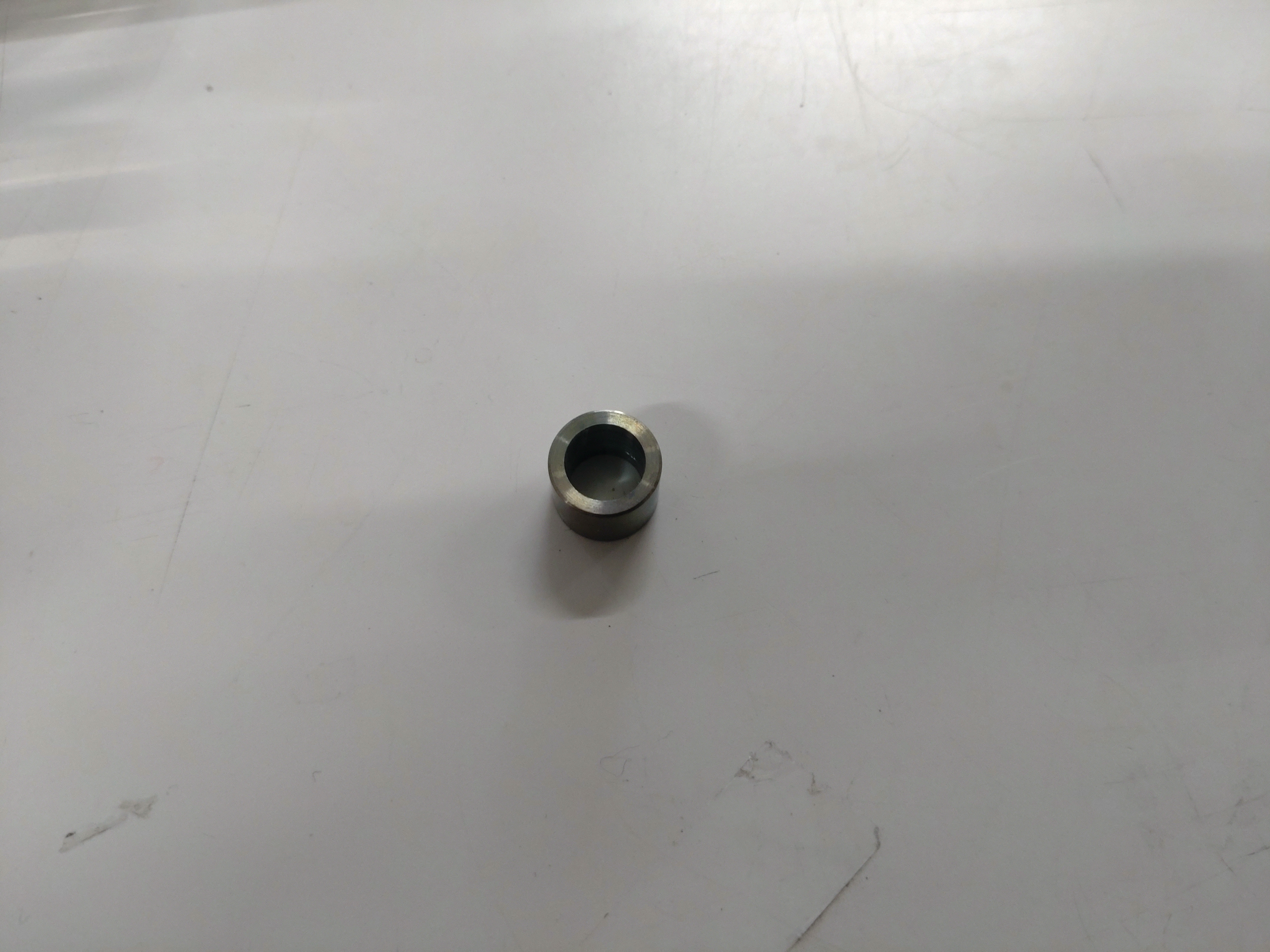

- Sample mount-

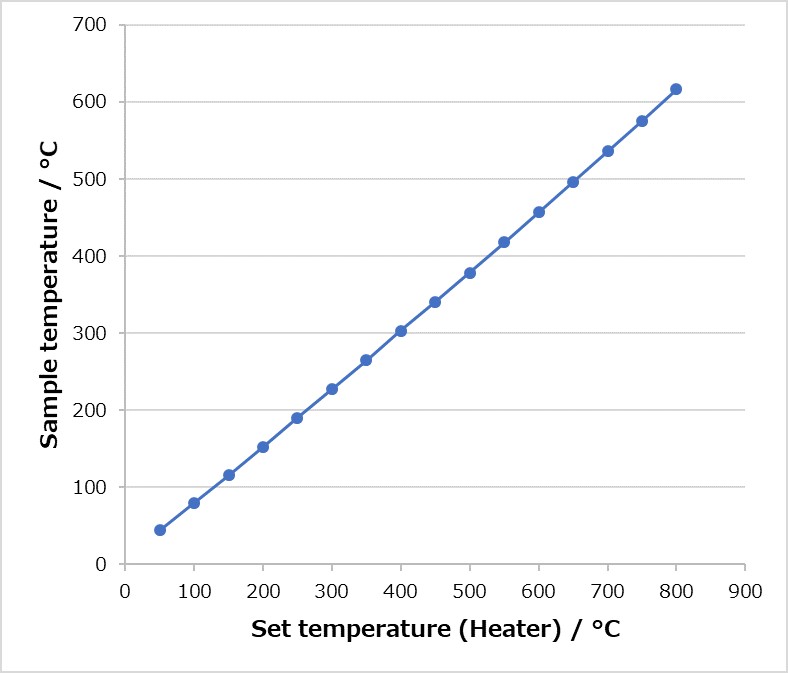

Correlation between Set and Sample Temperature
Last update: 2023/5/9
